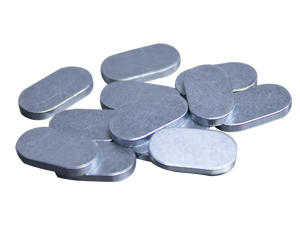

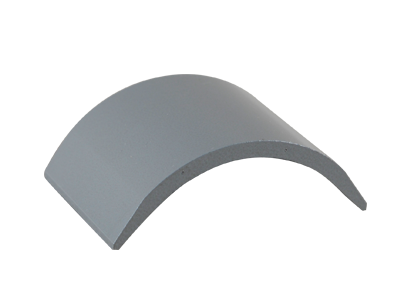

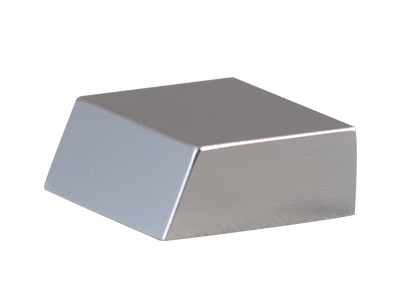

Sintered Nd-Fe-B Magnets
Sintered Nd-Fe-B Magnets
Sintered Nd-Fe-B Magnets
Sintered Nd-Fe-B Magnets
Sintered Nd-Fe-B Magnets

Sintered Nd-Fe-B Magnets

Sintered NdFeB Magnets are the strongest magnets ever made with better magnetic properties and cost performance.

  • Magnetic Properties

  • Demagnetization Curves

  • Dimensional Tolerance

  • Manufacturing Process

  • Surface Treatment

  • Applications

  • Product Features

Magnetic Properties

Grade Remanence Magnetic Inductio Intrinsic Coercivity Max Magnetic Energy Product Maximum Working Temperature≤
Br ( KG) Br (T) Hcb (KOe) Hcb (KA/m) Hcj (KOe) Hcj (KA/m) (BH)max(MGOe) (BH)max(KJ/m³) ℃
Max Min Max Min
N35 ≥11.8  ≥1.18  ≥10.8 ≥860 ≥12 ≥960 37 33 295 263 N ≤80
N38 ≥12.3  ≥1.23  ≥10.8 ≥860 ≥12 ≥960 39 36 310 287
N40 ≥12.7  ≥1.27  ≥11.0 ≥876 ≥12 ≥960 41 38 327 302
N42 ≥13.0  ≥1.30  ≥11.0 ≥876 ≥12 ≥960 43 40 343 320
N45 ≥13.3  ≥1.33  ≥11.0 ≥876 ≥12 ≥960 46 42 366 335
N48 ≥13.7  ≥1.37  ≥10.5 ≥836 ≥12 ≥960 49 45 390 358
N50 ≥14.0  ≥1.40  ≥10.5 ≥836 ≥12 ≥960 51 47 406 374
N52 ≥14.2 ≥1.42 ≥10.5 ≥836 ≥12 ≥960 53 49 422 390
N54 ≥14.4 ≥1.44 ≥10.5 ≥836 ≥11 ≥876 55 51 438 406
N35M ≥11.8  ≥1.18  ≥10.8 ≥860 ≥14 ≥1114 37 33 295 263 M ≤100
N38M ≥12.3  ≥1.23  ≥11.0 ≥876 ≥14 ≥1114 39 36 310 287
N40M ≥12.7  ≥1.27  ≥11.5 ≥915 ≥14 ≥1114 41 38 327 302
N42M ≥13.0  ≥1.30  ≥11.8 ≥939 ≥14 ≥1114 43 40 343 320
N45M ≥13.3  ≥1.33  ≥12.0 ≥956 ≥14 ≥1114 46 42 366 335
N48M ≥13.7 ≥1.37 ≥12.2 ≥972 ≥14 ≥1114 49 45 390 358
N50M ≥14.0  ≥1.40  ≥12.5 ≥995 ≥14 ≥1114 51 47 406 374
N52M ≥14.2 ≥1.42 ≥12.5 ≥995 ≥14 ≥1114 53 49 422 390
N33H ≥11.4  ≥1.14  ≥10.6 ≥844 ≥17 ≥1350 35 31 279 247 H ≤120
N35H ≥11.8  ≥1.18  ≥10.8 ≥860 ≥17 ≥1350 37 33 295 263
N38H ≥12.3  ≥1.23  ≥11.0 ≥876 ≥17 ≥1350 39 36 310 287
N40H ≥12.7  ≥1.27  ≥11.5 ≥916 ≥17 ≥1350 41 38 327 302
N42H ≥13.0  ≥1.30  ≥11.8 ≥940 ≥17 ≥1350 43 40 343 320
N45H ≥13.3  ≥1.33  ≥12.0 ≥955 ≥17 ≥1350 46 42 366 335
N48H ≥13.6  ≥1.36  ≥12.2 ≥971 ≥17 ≥1350 49 45 390 358
N50H ≥14 ≥1.4 ≥12.5 ≥995 ≥17 ≥1350 51 47 406 374
N52H ≥14.3 ≥1.43 ≥12.5 ≥995 ≥17 ≥1350 53 49 422 390
N33SH ≥11.4  ≥1.14  ≥10.6 ≥844 ≥20 ≥1592 35 31 279 247 SH ≤150
N35SH ≥11.8  ≥1.18  ≥10.8 ≥860 ≥20 ≥1592 37 33 295 263
N38SH ≥12.3  ≥1.23  ≥11.0 ≥876 ≥20 ≥1592 39 36 310 287
N40SH ≥12.6  ≥1.26  ≥11.5 ≥916 ≥20 ≥1592 41 38 327 302
N42SH ≥12.9 ≥1.29  ≥11.8 ≥940 ≥20 ≥1592 43 40 343 320
N45SH ≥13.2 ≥1.32  ≥12.0 ≥955 ≥20 ≥1592 46 42 366 335
N48SH ≥13.6  ≥1.36  ≥12.2 ≥971 ≥20 ≥1592 49 45 390 358
N50SH ≥14 ≥1.4 ≥12.5 ≥995 ≥20 ≥1592 51 47 406 374
N33UH ≥11.4  ≥1.14  ≥10.6 ≥844 ≥25 ≥1990 35 31 279 247 UH ≤180
N35UH ≥11.8  ≥1.18  ≥10.8 ≥860 ≥25 ≥1990 37 33 295 263
N38UH ≥12.3  ≥1.23  ≥11.0 ≥876 ≥25 ≥1990 39 36 310 287
N40UH ≥12.6  ≥1.26  ≥11.5 ≥916 ≥25 ≥1990 41 38 327 302
N42UH ≥12.9 ≥1.29  ≥11.8 ≥940 ≥25 ≥1990 43 40 343 320
N45UH ≥13.2 ≥1.32  ≥12.0 ≥955 ≥25 ≥1990 46 42 366 335
N48UH ≥13.6  ≥1.36  ≥12.2 ≥971 ≥25 ≥1990 49 45 390 358
N28EH ≥10.4 ≥1.04 ≥9.50 ≥756 ≥30 ≥2388 30 26 239 207 EH ≤200
N30EH ≥10.8  ≥1.08  ≥9.50 ≥756 ≥30 ≥2388 32 28 255 223
N33EH ≥11.4  ≥1.14  ≥10.6 ≥844 ≥30 ≥2388 35 31 279 247
N35EH ≥11.8  ≥1.18  ≥10.8 ≥860 ≥30 ≥2388 37 33 295 263
N38EH ≥12.3  ≥1.23  ≥11.0 ≥876 ≥30 ≥2388 39 36 310 287
N40EH ≥12.6  ≥1.26  ≥11.5 ≥916 ≥30 ≥2388 41 38 327 302
N42EH ≥12.9 ≥1.29  ≥11.8 ≥940 ≥30 ≥2388 43 41 343 320
N45EH ≥13.2 ≥1.32  ≥12.0 ≥955 ≥30 ≥2388 46 42 366 335
N30TH ≥10.8  ≥1.08  ≥9.50 ≥756 ≥35 ≥2786 32 28 255 223 TH ≤220
N33TH ≥11.4  ≥1.14  ≥10.6 ≥844 ≥35 ≥2786 35 31 279 247
N35TH ≥11.8 ≥1.18 ≥11.0 ≥876 ≥35 ≥2786 37 33 295 263
N38TH ≥12.2 ≥1.22 ≥11.0 ≥876 ≥33 ≥2627 39 36 310 287


Demagnetization Curves

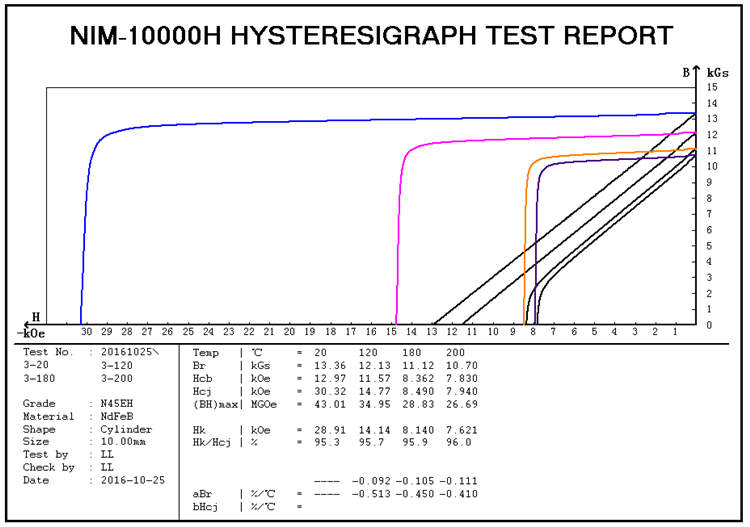

N45EH

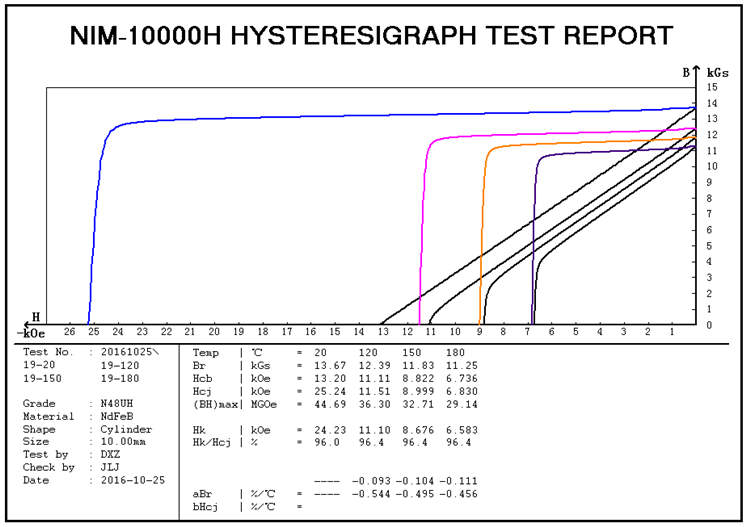

N48UH

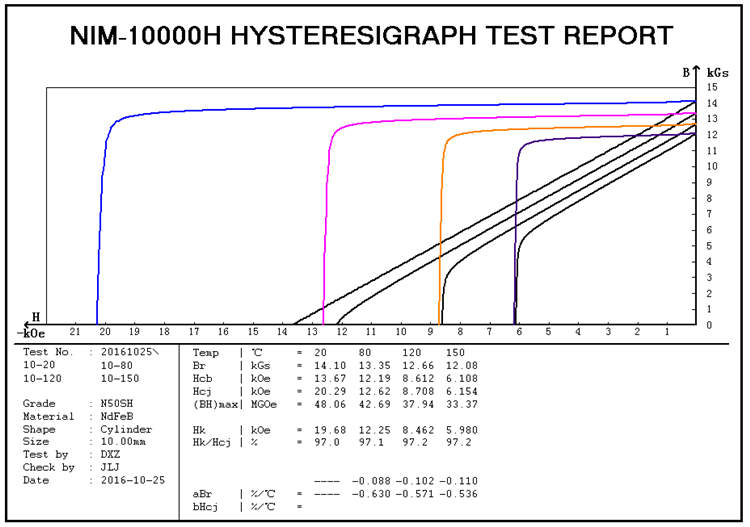

N50SH

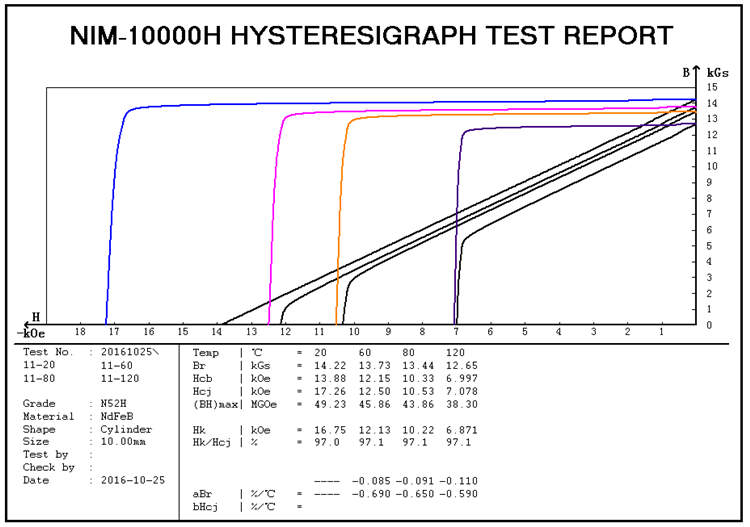

N52H

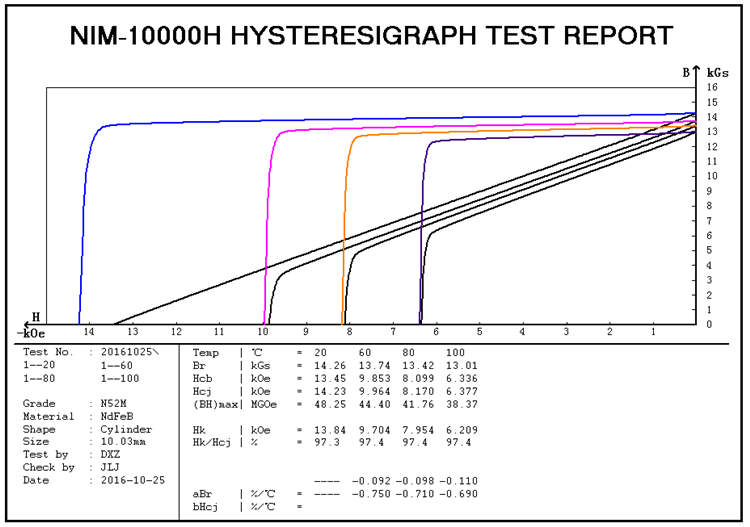

N52M

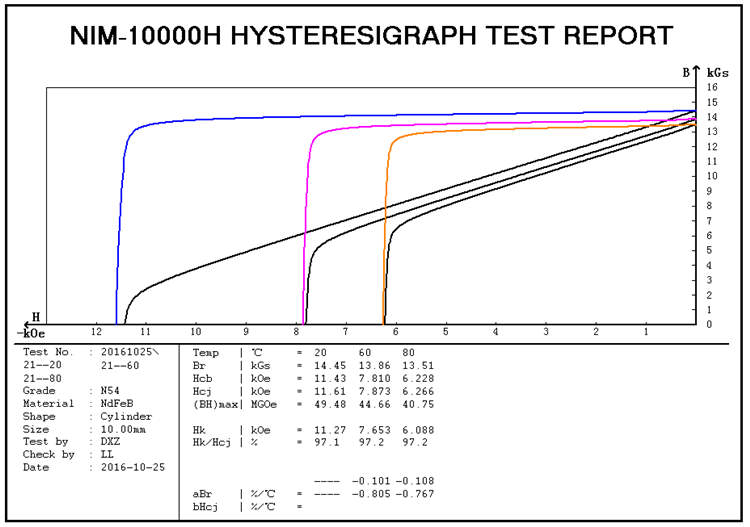

N54

Dimensional Tolerance

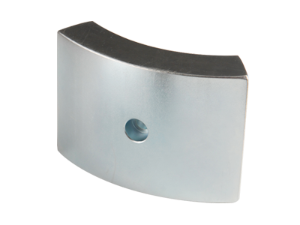

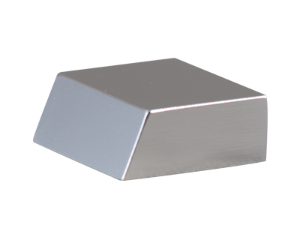

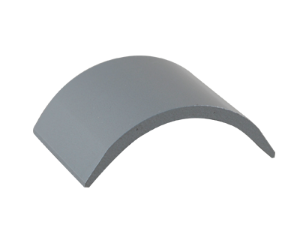

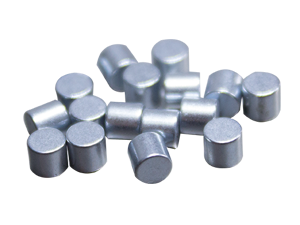

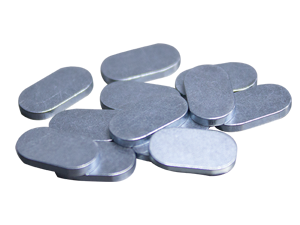

Innuovo owns advanced equipment and has a good ability to perform Block, Disk, Ring, Segment shaped products.




Manufacturing Process


Surface Treatment

On the basis of producing high quality magnetic materials, Innuovo has been researching and developing update surface protection technology. Innuovo can provide customers with high quality coatings and plating of Zinc, Tin, Nickle, Epoxy etc.

During the process of coating and plating, Innuovo attaches great importance to environment protection, all coating meet the requirements of ROHS and RECH.


No. Type Thickness（um） Color SST （H）
1 Zink White Zink 4～10 Blue & White ＞48
Colored Zink Iridescent ＞48
2 H Nickel NiCuNi (barrel) 10～30 Silver White ＞48
NiCuNi (rack) 10～30 Silver White ＞16
Chemical Ni (barrel) 3～20 Silver Grey ＞72
Chemical Ni (rack) 3～20 Silver Grey ＞24
Black Ni 10～30 Black ＞48
3 Nickel+Tin 10～30 Silver White ＞72
4 Electrophoresis 20～30 Black, Grey ＞240
5 Phosphating / Grey /

Note: Specification may alter in case of product with deep hole and huge surface.

Applications

  • Aviation

    Aviation

    CRH

    CRH

    Wind Energy

    Wind Energy

    IT

    IT

    Automobile

    Automobile

  • Medicine

    Medicine

    Machinery Manufacturing

    Machinery Manufacturing

    UAV

    UAV

Product Features

High Consistency

The consistency and stability of products between batches provides safeguard to our customers. For instance, the consistency of dimension, magnetic properties reaches 6 sigma. (Cpk is larger than 1.67)


High Working Temperature

In order to raise products working temperature, Innuovo has poured much energy into research and production processes to realize better high thermal stability and low thermal demagnetization with same grades.


High Corrosion Resistance

Through consistent research and process improvement, weight loss of less than 2mg/cm2 is available for Innuovo magnet after 480 hours HAST Testing.
